IMAGING
Image Sensor 1/2.8 inch, CMOS
Optical Zoom 20x
Video Format 2160p @ 60/50/30/25fps
1080p @ 60/50/30/25fps
720p @ 60/50/30/25fps
Horizontal angle of view 72.8° (W) ~ 6.8° (T) 61.2° (W) ~ 3.38° (T)
Vertical angle of view 44.1° (W) ~ 3.8° (T) 35.3° (W) ~ 1.9° (T)
Aperture F1.6 ~ 3.5 F1.8 ~ 2.68
Focus TOF, Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation Yes
Digital Noise Reduction Yes
SNR >55dB
Effective Pixels >8.4 Megapixels
MECHANICAL

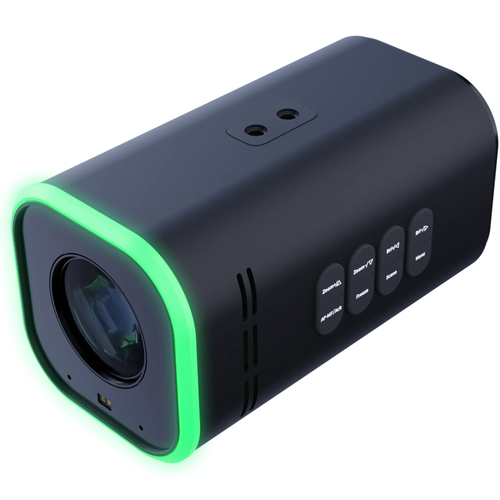

Physical Buttons Quantity: 8; Features: Zoom, Focus, Brightness,
menu control, image freeze, and mode switching.

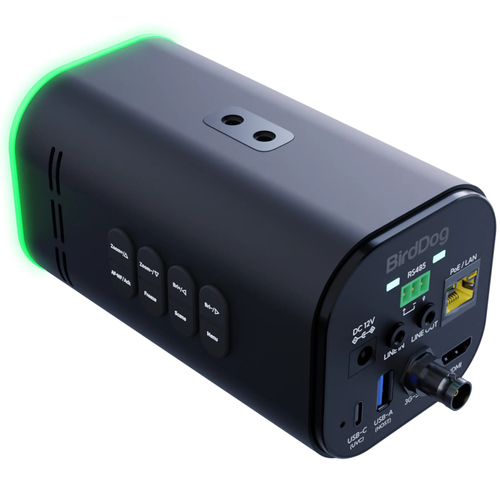

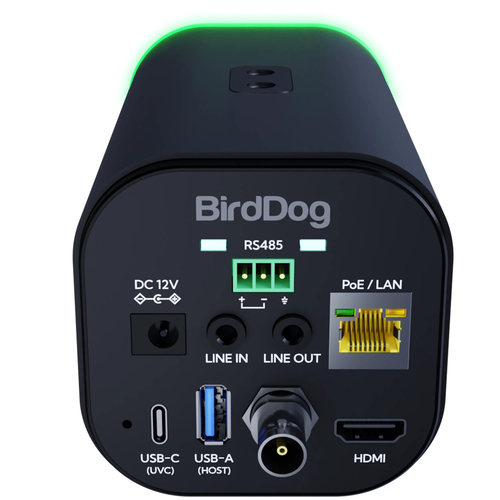

I/O INTERFACE
Video Interfaces 1 x HDMI: Version 2.0; 1 × 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard, USB-C UVC 1.1
Video Compression Format H.264 / H.265
LAN 100M/1000M adaptive Ethernet Support: PoE(802.3af)
Network Protocol NDI|HX2, NDI|HX3
Control Protocol VISCA Baud Rate: 9600/4800/38400/2400, VISCA-IP, NDI
Control Interface RS485: 2pin phoenix port, TYPE-C (UVC1.1)
Audio I/O 1 × Line In, 3.5mm Jack; 1 × Line Out, 3.5mm Jack, Built-in Mic
USB 1 x USB3.0,Type-C (UVC 1.1)
GENERAL PARAMETER
Power Input DC005-2.0mm type(DC IN 12V)
Input Voltage DC 12V /PoE(802.3af)
Input Current 1.5A(Max.)
Power Consumption 18W (Max)
Working Temperature -10°C ~ 40°C
Dimension (W*H*D) 145mm 76mm 78.5mm
