IMAGING
Image Sensor Sony 1 / 1.8” CMOS – ULTRA HD
Lens f= 6.25- 125mm
Optical Zoom 20x
Video Format 2160p @ 60/59.94/50/30/29.97/25fps, 1080p @ 60/59.94/50/30/29.97/25fps, 1080i @ 59.94/50fps, 720p @ 60/59.94
Horizontal angle of view 60° (W) ~ 3.5°(T)
Vertical angle of view 35.° (W) ~ 2.0°(T
Diagonal angle of view 66.6°(W) ~ 4.0°(T)
Aperture F1.58(W) ~ 3.95(T)
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority, Manual
Shutter speed 1/1 - 1/10000s
Backlight Compensation Yes
Digital Noise Reduction 3D Noise Reduction
SNR ≥45dB
Effective Pixels 8.42 MP
AI FUNCTIONALITY
AI Tracking Presenter tracking, Zone
MECHANICAL
Pan/Tilt Rotation ±170°, -30° ~ +90°
Pan Control Speed 1.7-80°/sec
Tilt Control Speed 1.7-60°/sec
Preset Number 255 Presets
Display e-Ink 2.13” with customization logo
Integrated Tally Light Halo style and rear number tally system

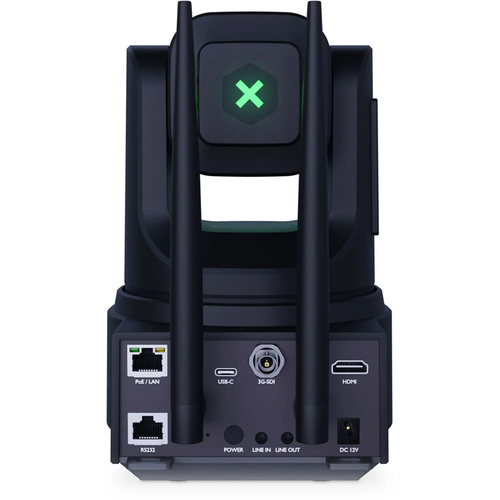

I/O INTERFACE
Video Output Interfaces 3G-SDI, HDMI, USB-C UVC, Network
Video Compression Formats H.264, H.265
Network Interfaces 1Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6 2x2 MIMO (Optional Base station)
Encoder Network Protocols NDI®|HX2, NDI®|HX3, RTSP, RTMP, SRT
Control Interfaces 1Gbps Ethernet, USB-C, RS-232
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI®, ONVIF
Analogue Audio 3.5mm TRS Line input/Mic Input
GENERAL
Environmental operation Internal
Input Voltage DC 12V, POE IEEE 802.3at
Input Current 5.0A (Max)
Battery Capacity 9450mAh
Battery operating time (per charge) ~4h (usage dependent)
Working Temperature 0ºC ~ +40ºC
Working Humidity 20% ~ 80%
Dimension (W*H*D) mm 140.2*188.9*203.2mm/ 295*245*254mm (before / after packing)
Dimension (W*H*D) in 5.5*7.43*8.0in/ 11.6*9.6*10.0in (before / after packing)
Net and Gross Weight 2.19kg (Net weight)
